SHEETING:

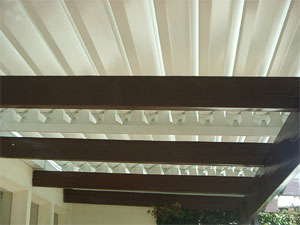

Chromodek (0.5mm)
The Chromadek sheets are prepared with a corrosion
inhibiting primer { 4-6 micrometers } and off
with a topcoat of polyurethane.
GUTTERS: Chromodek (0.6mm)
The gutters is profiled to incorporate the 150mm fascia.
The gutter will go around all four sides
[White. Colours on request.]
COLLUMNS: Steel: 76mm x 76mm x 2mm (Galvanised or
power coated to suit)
BEAMS: Chromodek: Box beam
150mm x 50mm x 2mm chromdek on galvanised steel, Box beams
are epoxy coated.
RAINWATER:
One PVC rainwater down pipe to ground level per ever 40
square meters covered area.
FASTENERS:
Pop rivets are Aluminum. Bolts are zinc coatered and lock
nuts are used
|
